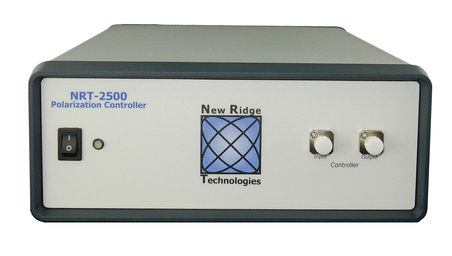

型号:NRT-2500,光纤偏振控制平台
发布时间:2016-12-08 11:54
NRT-2500是一款多功能偏振控制平台,为光转发器,设备和子系统的研发和生产提供多种内置偏振控制功能。
插入损耗 |
< 3 dB |
偏振损耗 |
< 0.3 dB |
回损 |
> 50 dB |
承受光功率 |
< 20 dBm |
工作波长 |
1.55 microns (C- and L-bands) |
接头 |
FC/UPC, FC/APC, SC |
扰偏器模式偏振态速度 |
up to 3,400 rad/sec for rmode ≡ b0.5 of a Rayleigh distribution2 |
旋转器模式速度 |
940,000 rad/sec on great circle orientation for 75 kHz drive |
随机发生器模式 偏振态速度 |
up to 2,250,000 rad/sec3 |
去偏器模式 偏振态速度 |
over 3,000,000 rad/sec4 |
追踪器模式更新时间 |
~20 microseconds5 |
电源 |
12 VDC from 100-240 VAC, 50 – 60 Hz, AC-DC converter |
通讯接口 |
RS-2326 |
尺寸 |
H=4.04” (102.6 mm), W=10.12” (257 mm), D=12.32” (313mm) |
