型号:NRT-3000,波长范围:1520-1580nm
发布时间:2018-05-02 10:29
实时的偏振态数据输出和存储
dSOP/dt 触发功能,能捕捉到任何情况
坚固设计,适合实验室和野外使用
体积小,便携

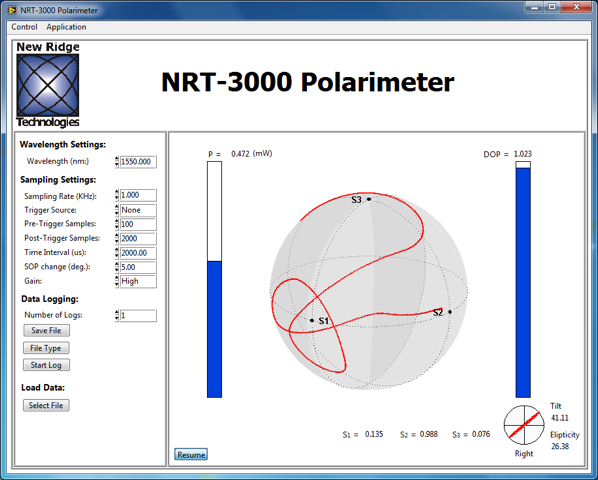

The NRT-3000 control software has three modes of operation: (1) Poincaré Sphere Mode, (2) Strip Chart Mode and the new (3) Histogram Mode. The first two modes have many functionalities already familiar, including real time streaming of SOP, Power, DOP, tilt and ellipticity. The NRT-3000 adds real-time calculation of the SOP speed, dSOP/dt, in the Strip Chart mode.

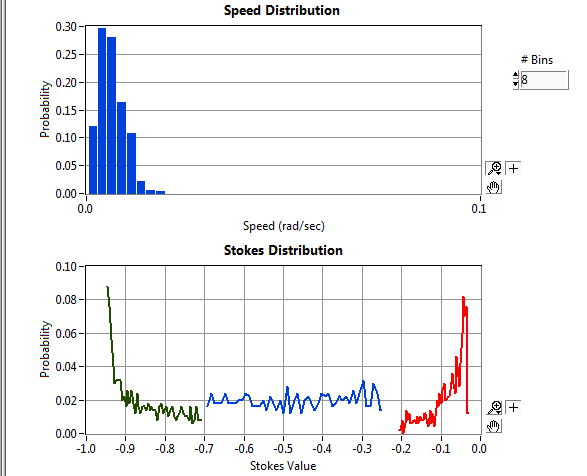

The third mode of the NRT-3000 GUI displays two histograms: one for the SOP speed, dSOP/dt, and the second histogram for the Stokes parameters, S1, S2, S3.
波长范围 |
1520 nm - 1580 nm |
测量参数 |
Stokes Parameters (S1, S2, S3) and Degree of Polarization (DOP), Power and SOP speed (dSOP/dt) |
采样率 |
38 Samples/sec to 80 Mega Samples/sec |
记录 |
Trigger on user-defined ∆SOP within ∆t. Records pre-trigger and post-trigger samples. 16,000 total SOP states. |
通讯接口 |
USB 2.0 |
控制平台 |
Windows PC |
尺寸 |
H=1.73” (44 mm), W=5.78” (147 mm), D=7.88” (200 mm) |
光学接口 |
FC/APC (other options available) |
电源 |
12 VDC |
